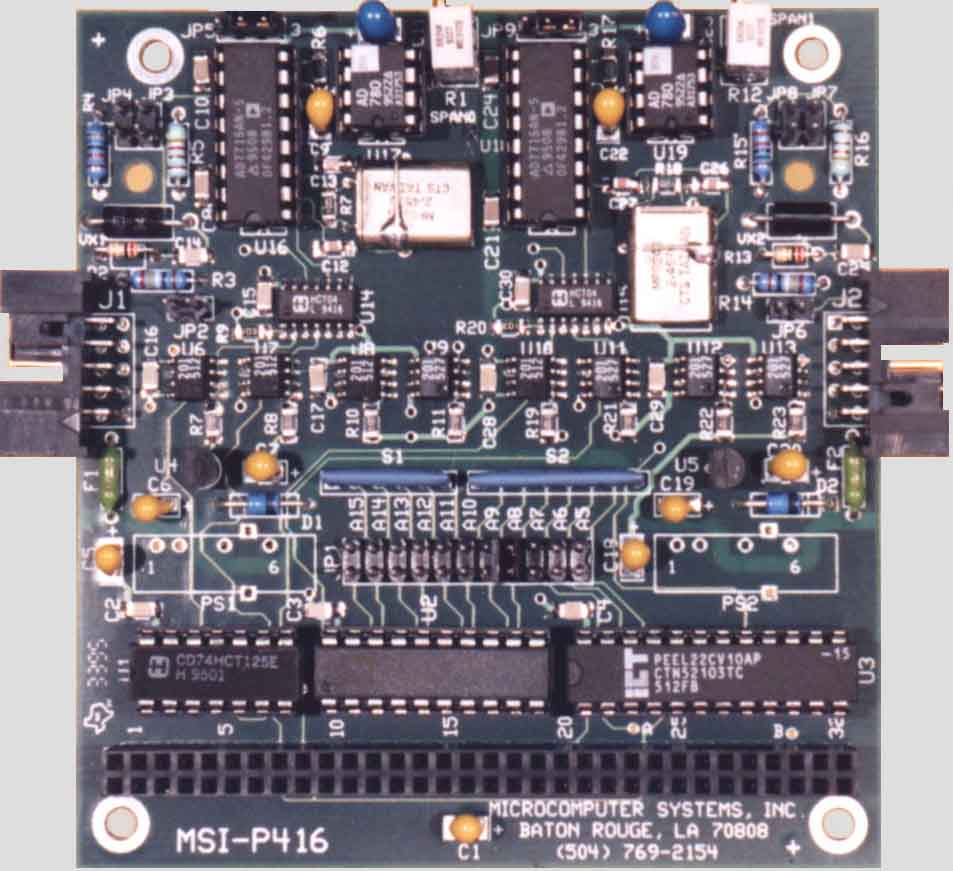

The MSI-P416
provides two isolated 16-bit differential
input analog channels. Each channel
is individually selectable for 0-5V, ±5V, 0-10V, ±10V,
0-50mV,
±50mV or 0-20mA. Onboard ±15V dc-to-dc converters power
the
A/D converters and optical isolators of each channel to provide 750V
isolation
from input-PC/104 Bus and input-to-input. Conversion accuracy is
±1
LSB with conversion rates to 60 samples/second. Fused active 20 mA
sources
are provided for powering inputs of transducer transmitters. The unit
is
an 8-bit stackthrough PC/104 with I/O mapped 16-bit addressing for
which
addresses and interrupt options are jumper selectable. Operates
-40°C
to 85°C. Requires +5V only.
