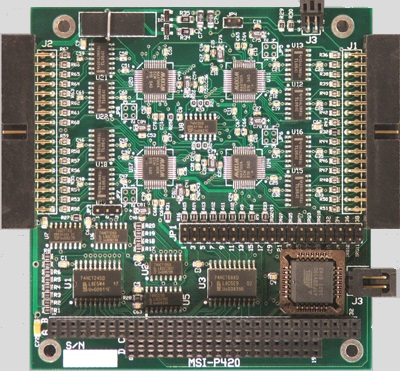

The MSI-P420
series is a 12-bit single-ended 0-5V analog
input board
which provides models with 8, 16, 24 or 32
input channels based on the MAXIM MAX1304 analog-to-digital converter.
Simultaneous conversions are initiated by software or external pulse
inputs. Input buffer amplifiers powered by an
onboard 5V to ±9V dc-to-dc converter provide 1 MOhm
impedance inputs.
Linearity
is ±1/2 LSB with a 2.2us conversion time for 32 channels (456
Ksps per channel). The unit is a 16-bit
stackthrough PC/104 with I/O mapped 16-bit addressing for which
addresses
and interrupt options are jumper selectable. Operates -40°C to
85°C.
Requires +5V only.
The
MSI-P910
is a terminal board for simplifying field wiring connections to the
MSI-P420.
